WORK DESCRIPTION FOR FIELD MEASURE
Code: 20P2795502
Version: 2.0
Replace transmission mount
Model 247
Work procedure
- Disconnect/connect ground line of battery (AR54.10-P-0003MFA).
- Remove/install battery (AR54.10-P-0005MFA).
- Remove/install battery carrier (AR54.10-P-0028MFA).
- Install crossbar and secure transmission. (AR01.10-P-0107MFA)
- Unscrew nut (A, Figure 1) and remove ground strap (B, Figure 1).
Nut of ground strap to transmission mount 20 Nm.
- Remove nut (C, Figure 1) and screw (D, Figure 1) and remove holder (E, Figure 1).
Screw/nut of holder to transmission mount/body 58 Nm.
- Remove screws (F, Figure 1).
Screw of transmission mount to body/transmission/mounting support 106 Nm.
- Remove and replace transmission mount (G, Figure 1).
Figure 1
- Assemble in reverse order.
Parts
| Quantity | Designation | Part no. |
| 1 | Transmission mount | A 247 240 31 00 |
* The replacement parts must be determined for the chassis number via the parts job in the Xentry Portal.
Small parts such as screws, lock nuts, sealing rings, cable ties, fluids, sealants, etc. are not listed in the parts list. The required small parts are taken into account in the budgeting.
Operation text and flat rate
| Operation | Operation text | Flat rate | Accounting no. no. |
| 02-1939 | Replace transmission mount (M282 with transmission 700) Includes:
| 1.4 h | 27 955 02 |
| 02-1939 | Replace transmission mount (M260 with transmission 724) Includes:
| 1.7 h | 27 955 02 |
Global Service & Parts
Replace Transmission Mount
Model GLB-Class (247 platform)
Model Year 2020
Bestseller No. 1

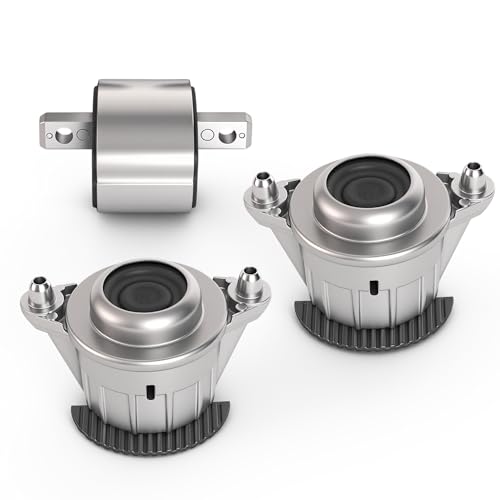

JAVOUKA Engine Motor Mount Transmission Bracket Kits for Mercedes-Benz
- 【Adaptation Model】:This Engine Mount fits for Mercedes-Benz C230 2008-2009,fits for Mercedes-Benz C250 2010-2012,fits for Mercedes-Benz C300 2008-2011
- 【Adaptation Model】:This Engine Mount fits for Mercedes-Benz C350 2008-2015,Mercedes-Benz E350 2010-2016,fits for Mercedes-Benz E400 2014-2017
- 【Interchange OE Number】:2042400917, 2122400418, A2042400917,2042404217、2042404317、2042400117、A2042400117、AT10575
- 【High Specification】:Engine Motor and Transmission Mount Kit used OE specification and design, high quality steel and rubber ensures a smooth and quiet ride, easy to install, direct replacement.
- Please confirm whether your old Engine Motor and Transmission Mount Kit part number matches the part number on our list before purchasing.you can also refer to our model compatibility table for purchase.professional installation is strongly recommended.(not including instructions).
Bestseller No. 2
Engine Motor & Transmission Mount Kit for Mercedes-Benz 2014-2019 CLA250
- 【High quality】 We have always been the most high -quality engine and transmission bracket manufacturer. All of our products use the highest quality raw materials. I have the most advanced laboratory equipment to test their products. The quality can completely replace OE brackets, or even surpass them
- 【Compatible vehicle】 2014-2019 CLA250 2.0L L4 Engine, 2014-2019 CLA45 AMG 2.0L L4 Engine, 2013-2016 B250 2.0L L4 Engine, 2015-2020 GLA 250 2.0L L4 Engine,2015-2019 GLA45 AMG 2.0L L4 Engine.
- 【Reference OE number】A4076 9868 EM7122 SKM 9868 V302347 2462401717 2462402517,A4093 EM7123 9869 V302345 2462400617,A4050 EM7120 9866 V302343 2462401209,A4049 EM7121 9867 V302341 2462400809.
- 【Notice】 Please use Amazon's partfinder to check whether this mounts are compatible with your vehicle
- 【After sales service】Provide one-year warranty service. If you have any questions, please contact us at any time.
Bestseller No. 3
A-Premium Engine Motor Mount and Transmission Mount Kit, Set of 3
- [Vehicle Fitment]: Compatible with Mercedes-Benz C230 2006-2007, C280 2006-2007, C350 2006-2007, C43 AMG 1998-2000, CLS500 2006-2006, CLS55 AMG 2006, CLS550 2007-2011, CLS63 AMG 2007-2011, E300 1996-1999, E320 1998-2005, E320 2007-2008, E350 2006-2009, E430 1998-2002, E500 2003-2006, E55 AMG 1999-2006, E550 2007-2009, E63 AMG 2007-2009, SL500 2003-2006
- [Vehicle Fitment2]: Compatible with Mercedes-Benz SL55 AMG 2003-2008, SL550 2007-2010, SL63 AMG 2009-2012, SLC300 2017-2020, SLK250 2012-2015, SLK280 2006-2008, SLK300 2009-2011, SLK300 2016, SLK350 2005-2016, SLK55 AMG 2005-2011
- [Reference Number]: 9562, 9852, A7072HY, A7073, A4095, EM-9562, EM9562, 2122400418
- [Package Included]: 1x Front Left Motor Mount, 1x Front Right Motor Mount, 1x Rear Transmission Mount
- [Buy with Confidence]: A-Premium offers a one-year unlimited-mileage guarantee on our meticulously crafted engine mount kit. We offer a wide variety of automotive accessory categories, ensuring that you can hit the road with peace of mind.
Bestseller No. 4

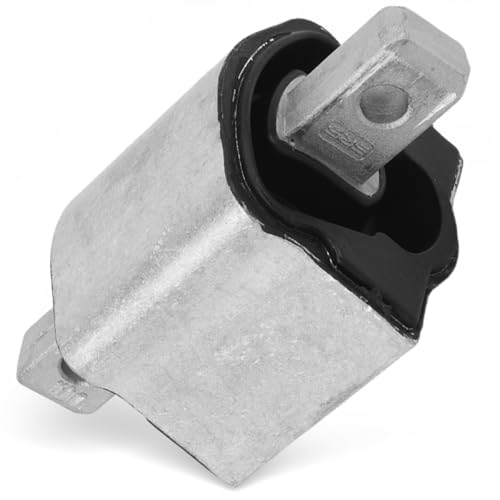

Bomunik 2122400418 Transmission Mount Compatible with Mercedes-Benz C230
