NHTSA ID Number: 10167107
Manufacturer Communication Number: P-B-88.40-92a
Summary
Permanently Illuminated Star Installation Instructions
1 Affected Product
Vehicle
Date: April 2014
Order No.: P-B-88.40/92a
Supersedes P-B-88.40/92
Group: 88
Revision a: Included models: 204.3/9
SUBJECT: Models 204.0/3/9 Permanently Illuminated Star Installation Instructions
Note: These US specific instructions are for the star to be illuminated when the ignition is switched on.
A. Remove Front SAM
- Place a piece of tape on the water deflector to prevent damage (Figure 1).
- Remove cover from front SAM
- Remove the four screws in the front SAM.
Note:
When removing screws:
- Use suitable tool (Figure 2): 50 mm T20 Torx bit locally sourced e.g., Milwaukee® T20 (Figure 2).
- Also shown (Figure 2) is Facom® tools 1\4” ratcheting wrench for the back two screws.
- Pull the front of the SAM straight up while shifting it slightly to the left and remove from housing (Figure 3).
- Remove connector 11C from front SAM. (Figure 4).
- Remove the wire in cavity 13 from 11C. (Figure 4).
Note:
Wire color is: Pink / yellow.
- Plug in the wire (A, Firgure 5) from 11C, pin 13 into the cavity of the 2 pin connector (arrow, Figure 5) that came with “Y” adapter harness (A207 820 02 04).
Note:
Ensure the wire from the vehicle is in the same cavity as yellow /red wire of the “Y” harness for the fuse.
- Plug the red wire (arrow, Figure 6) from the “Y” adapter harness into cavity 13 on connector 11C.
- Plug the 11C connecter back into the front SAM.
- Connect Illuminated star wiring harness (A207 820 00 00) connector pin into 2 pin connector (A, Figure 6).
- Connect harness (A, Figure 6) into
“Y” adapter harness harness (B).
- Insert square rubber stopper (arrow, Figure 7) into the side wall of the SAM box.
- Install SAM.
- Fit the wire harness for the wiper motor on top of the rubber stopper for the illuminated star harness.
- Position the fuse (arrow Figure 8) as shown for future access.
- Install cover.
- Remove the Star (Figure 9).
Note:
Tilt the star out at the bottom (Figure 9). It does not turn on model 204.
- Remove radiator support plastic cover.
- Install illuminated star harness and secure into place with cable tie (arrow, Figure 10).
- Install radiator support cover.
- Connect and install Illuminated star.
- Check and verify all connections.
- Verify operation.
Parts Information
| Qty. | Part Name | Part Number |
| 1 | Illuminated star wiring harness | A207 820 00 00 |
| 1 | “Y” wiring harness | A207 820 02 04 |

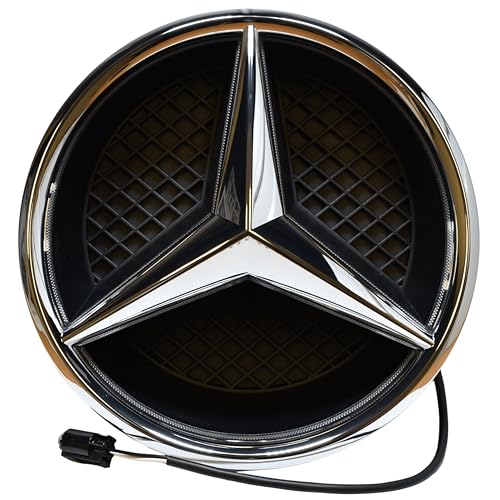

| 1 | Illuminated star | A207 817 04 16 |
P-B-88.40-92a
Bestseller No. 1

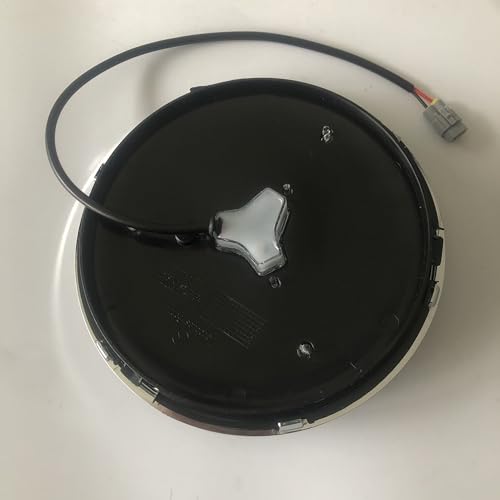

LOUEI White LED Light 3D Badge Mirror Emblem Front Grille Star Illuminated Logo for MB 2014-2018 C300 2011-2015 E350 13-19 GLK350 CLA250 auto (14-18 C300 11-15 E350)
- Check the fittness on the details before purchase,Or Contact with us. Compatible with MB auto 2014-2018 W205 C300 2011-2015 W212 E350 2013-2019 X204 GLK350 2013-2019 CLA250 ML350 2011-2016 CLS550
- ILLUMINATION: Bright LED lights create a stunning visual effect, making your vehicle's emblem stand out day and night.POWER EFFICIENCY: Low power consumption LED technology ensures long-lasting illumination without straining your vehicle's electrical system
- INSTALLATION: Direct replacement design allows for straightforward installation while maintaining the original look of your car.Direct Replacement: Installing this emblem does not require complex modifications or customization. Its design takes into consideration similar dimensions and interfaces as the original emblem, allowing for a straightforward replacement without the need for extensive adjustments.
- [ ] Diameter:18.5cm/7.28INCH.White light,Silver emblem.Mirror three-dimensional raised car emblem.ABS engineering plating material, anti-rust, enhance the grade, new design
- A striking and iconic design feature that makes your vehicle stand out from the crowd, whether it's day or night.Illuminated emblem enhances the visibility of your vehicle, contributing to safety as it makes it easier for other drivers,not just a decorative element, but also a symbol of brand identity and personality
Bestseller No. 2
LOUEI Silver LED Light 3D Badge Mirror Emblem Front Grille Star Illuminated Logo for MB auto 08-13 W204 C300 X204 GLK250 W245 B200 V250 G500 car (W204)
- Check the fittness on the details before purchase,Or Contact with us. Compatible with MB auto 2008-2013 W204 c-class C180 C200 C230 C250 C300 C350 2006-2012 GLK X204 GLK 220 CDI GLK 250 CDI GLK280 GLK300 GLK350 auto 2005-2010 W245 B150 B170 B200 2008-2019 VITO 2015-2019 W447 V class V250 V260 1992-2018 W463 G class G300 G400 G500 G550
- ILLUMINATION: Bright LED lights create a stunning visual effect, making your vehicle's emblem stand out day and night.POWER EFFICIENCY: Low power consumption LED technology ensures long-lasting illumination without straining your vehicle's electrical system
- INSTALLATION: Direct replacement design allows for straightforward installation while maintaining the original look of your car.Direct Replacement: Installing this emblem does not require complex modifications or customization. Its design takes into consideration similar dimensions and interfaces as the original emblem, allowing for a straightforward replacement without the need for extensive adjustments.
- [ W205 ] Diameter:18.5cm/7.28INCH.White light,Silver emblem.Mirror three-dimensional raised car emblem.ABS engineering plating material, anti-rust, enhance the grade, new design
- A striking and iconic design feature that makes your vehicle stand out from the crowd, whether it's day or night.Illuminated emblem enhances the visibility of your vehicle, contributing to safety as it makes it easier for other drivers,not just a decorative element, but also a symbol of brand identity and personality
Bestseller No. 3

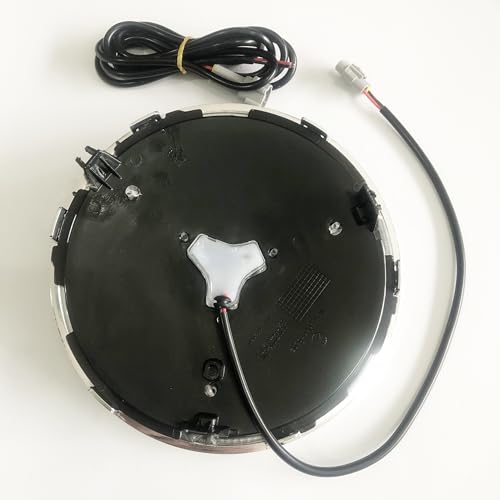

LOUEI White LED Light 3D Badge Mirror Emblem Front Grille Star Illuminated Logo for MB auto (19-21 C300 2020+CLA GLA)
- Check the fittness on the details before purchase,Or Contact with us. Compatible with MB auto,2019-2021 W205 C180 C200 C260 C300 2020+ GLA180 GLA200 GLA220 2020+W118 CLA200 CLA260 2019-2021 W177 A180 A200 Normal GLB180 GLB200 auto
- ILLUMINATION: Bright LED lights create a stunning visual effect, making your vehicle's emblem stand out day and night.POWER EFFICIENCY: Low power consumption LED technology ensures long-lasting illumination without straining your vehicle's electrical system
- INSTALLATION: Direct replacement design allows for straightforward installation while maintaining the original look of your car.Direct Replacement: Installing this emblem does not require complex modifications or customization. Its design takes into consideration similar dimensions and interfaces as the original emblem, allowing for a straightforward replacement without the need for extensive adjustments.
- [ ] Diameter:18.5cm/7.28INCH.White light,Silver emblem.Mirror three-dimensional raised car emblem.ABS engineering plating material, anti-rust, enhance the grade, new design
- A striking and iconic design feature that makes your vehicle stand out from the crowd, whether it's day or night.Illuminated emblem enhances the visibility of your vehicle, contributing to safety as it makes it easier for other drivers,not just a decorative element, but also a symbol of brand identity and personality
Bestseller No. 4

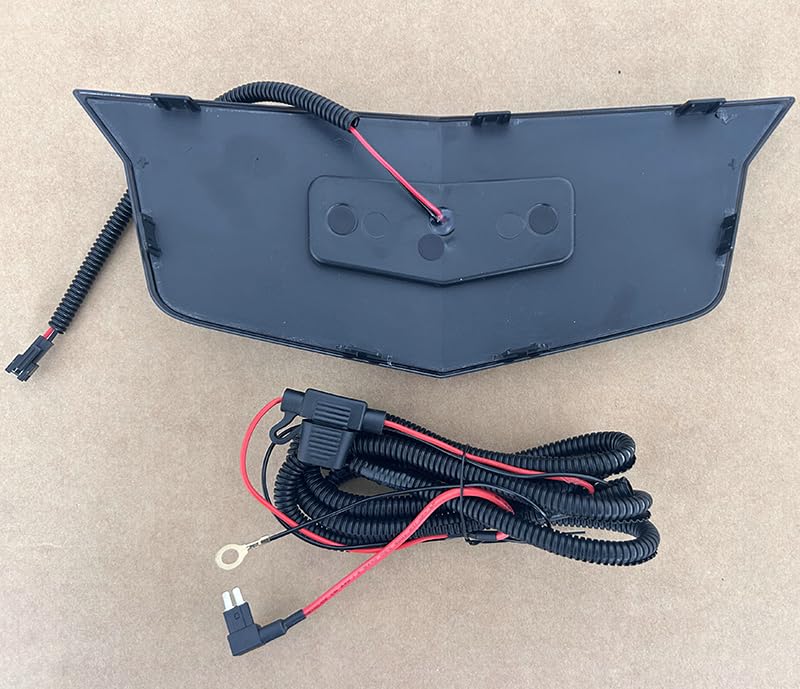

Car Glowing Light Up Emblem Illuminated Led Badge Sticker Upgrade Replacement Compatible with Escalade Model (Black with White led)
- 1.It is compatible with Escalade models from 2015-2024 Year;For 2015 models, only the new shape badge can be used.If the badge has a camera (as a single unit), it cannot be used.
- 2.It is only compatible with the front grill. If you need the rear one, Please consult first.
- 3.Easy to install, replacement installation; Professional installation is recommended;it comes with two 1.65m connecting wires, one red and one black. The red wire connects to the car fuse, and the black wire connects to any iron plate.
- 4.Waterproof design;Not afraid of everyday rain. The product is resistant to daily rainwater, such as when it rains or snows.However, driving through deep water is not recommended. We offer a 2-year quality guarantee, If have some quality problem,and we can replace it with a new one for you in 2 years. Please purchase with confidence.
- 5.We will test the product before shipping to ensure it is perfect. If there are any quality issues, we offer a one-year warranty;If you are unsure about the applicable vehicle model, please consult and confirm first.
Bestseller No. 5

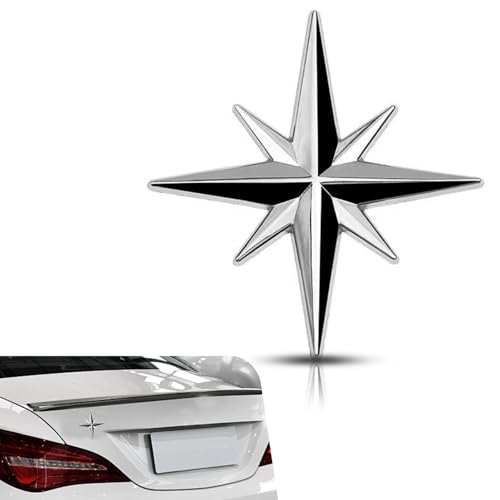

Bawkars Compass Octagonal Star Car Emblem, 3D Metal Polaris Auto Badge Decal Sticker, 2.36"×2.56" Anti-Scratch Stylish Exterior Decor Accessories for Automotive, Truck, RV, SUV, Motorcycle (Silver)
