This is to notify you of an Emission Service Campaign launch to replace the braided hose of the low-pressure fuel line and install a heat shield over the new braided hose on 23,958 Model Year (“MY”) 2018-2021 S-Class, S-Class Coupe/Cabriolet (217 and 222 platforms) vehicles. The affected vehicles will be visible and flagged in VMI as “OPEN” on August 12, 2022.
Issue
Mercedes-Benz AG (“MBAG”), the manufacturer of Mercedes-Benz vehicles, has determined that on certain Model Year (“MY”) 2028-2021 S-Class, S-Class Coupe/Cabriolet (217 and 222 platforms) vehicles, the low pressure fuel line does not correspond to the current series production configuration. Therefore, it is possible that accelerated aging in the area of connection could occur, resulting in a leak. A risk of fire can be ruled out.
What We’re Doing
MBUSA will conduct an Emission Service Campaign. An authorized Mercedes-Benz dealer will replace the braided hose of low-pressure fuel line and install a heat shield over the new braided hose
Parts
Parts are available and may be ordered as necessary.
Replace braided hose of right low-pressure fuel line
Model 217 and 222
Work Procedure
- Remove right air filter housing.
For basic data, see AR09.10-P-1152MNL.
- Reduce fuel pressure via the service connection.
For basic data, see AR07.03-P-1460-01MNL.
- Remove bleed line between right cylinder head cover and oil separator (figure 1).
Sealing ring will be reused.
- Unscrew fastening clamps of low-pressure line (A, Figure 2) upstream and downstream of the braided hose.
The fastening clamps (A, Figure 2) should not be removed.
- Open CLIC clamps on the braided hose and take off (figure 3, left). Carefully cut through the braided hose along its
This makes it easier to remove the braided hose from the metal line.
Cover work environment with a rag so that the remaining fuel is collected.
- Slide on new braided hose, position, and fasten with new CLIC clamps.
Slide CLIC clamps onto line before the fabric hose.
Position braided hose on metal line based on markings (figure 4, middle and right).
Metal lines must not be bent during assembly!
- Install heat shield over the new braided hose.
Close snap fasteners.
- Assemble in reverse order.
Primary Parts Information
Qty. | Part Name | Part Number |
2 | Hose clamp | A 000 995 60 10 |
1 | Fuel hose | A 177 070 31 00 |
1 | Heat shield | A 177 096 05 00 |
Replace Low Pressure Fuel Line
Model(s) S-Class (217 and 223 platform)
Model Year 2018-2021
https://www.startekinfo.com/service/download-document/outside/226805/
https://static.oemdtc.com/Recall/P-SC-2022070004.pdf
P-SC-2022070004
- 【Effortless Fuel Line Disassembly】 The 19mm 1/2" Dr. Common Rail Injection Fuel Line Nut Socket tightening and loosening fuel line connections become effortless and efficient. Its precision design ensures a snug fit and prevents damage to the fittings, fuel rails, and fuel lines, and reduce the possibility of fuel leakage
- 【Application】The 12 Point Diesel Injection Line Flare Nut Wrench is compatible with Mercedes-Benz and other diesel engines, and other models requiring flare nut wrenches for injector lines.
- 【Curved Handle】 The Injector Line Removal Tool features a uniquely designed handle with a slight bend angle, allowing easy access to fuel lines in tight and confined spaces.
- 【Durable Chromium-Vanadium Steel】 Crafted from durable chromium-vanadium steel, this Injector Line Opening Socket exhibits superior strength and resilience, withstanding high torque without breaking. Its rugged construction guarantees longevity and exceptional performance, making it a reliable tool for professional use.
- 【Quality Assurance and Customer Support】 We stand by the quality of our product. If you encounter any quality issues, we offer a hassle-free refund or replacement. Our dedicated customer support team is ready to assist you with any inquiries or concerns.
- 【Use】Direct replacement,For ease of installation.
- 【Return】Returns accepted. 12-Month warranty.
- 【Condition】Aftermarket item, 100% New Item, exactly same function as original.
- 【Compatible】Before ordering, Please check OEM Part Number and product description.
- 【Service】If you have any problem with our products, please sent message to our, we will provide a satisfaction solution to you.
- Fitment: Replacement for Mercedes-Benz A Class W176 2009-2017. Replacement for Mercedes-Benz CLA Class W117 2009-2017. Replacement for Mercedes-Benz GLA Class X156 2009-2017. Replacement for Mercedes-Benz C Class W205 2009-2017. Replacement for Mercedes-Benz E Class W213 2009-2017.
- High-quality Material: Fuel tank cap line wire is made of durable material for higher abrasion resistance, resistance, flexible and a perfect fit to your gas tank cap.
- Function: This fuel tank cap line needs to be used with fuel tank cap cover to protects the tank inside and prevents the sand and dust entering.
- Easy Installation: Easy to install, no other adjustments are required, easy to use and reliable, saving time and effort.
- Perfect Replacement: Direct replacement for old or damaged, replacement OE number: A2224700105 for reference, please double check the part number of your item before ordering.
- Genuine Genuine part that fits your specific vehicle
- Fuel Hose
- Part Number: 274 070 35 00
- Manufactured to meet specifications for fit, form, and function
- Pre-cut to perfectly fit your engine
- Fits OM 617, OM 616
- Corrects leaks caused by old line or bio-diesel incompatibility.
- Bio-diesel compatable
- PART NUMBER: 6420705532, 642 070 55 32, A6420705532.
- COMPATIBILITY: For Mercedes-Benz ML320 ML350 2007-2011. for Mercedes-Benz R320 R350 2077-2011.
- FITMENT: For Mercedes-Benz E320 E350 2007-2011, For Mercedes-Benz GL320 GL350 2007-2011.
- ITEM TYPE: Fuel return line fuel overflow hose line, diesel Injector return hose leak line.
- SERVICE: Support one year warranty when properly installed and under normal usage. Professional installation is highly recommended!
- Part Number 1634702864 1634702964 1634703764
- All units tested in excellent working condition
- Easy installation
- Replacement for Mercedes-Benz ML320 1998-2003
- Please be very careful to check our photos, make sure the photo showed is same as you wanted

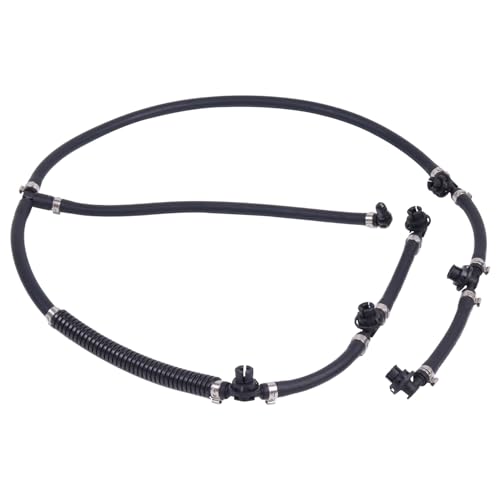

- 🚗【INTRODUCTION】Fuel Injector Return Line
- 🚗【COMPATIBLE INFORMATION 1】For 2007-2009 Mercedes-Benz E320 R320 ML320 GL320; For 2010-2011 Mercedes-Benz ML350
- 🚗【COMPATIBLE INFORMATION 2】For 2010-2012 Mercedes-Benz R350 GL350; For 2011-2012 Mercedes-Benz E350
- 🚗【PART NUMBER】6420705532
- 🚗【AFTER-SALES】Support one year warranty, we guarantees all products to be free from defects in materials and workmanship when properly installed and under normal usage to the original purchaser and for the original vehicle parts were installed on.
- Trustworthy replacement - this fuel line safely replaces the original fuel line to fix fuel leaks
- Durable design - withstands tough underhood and undercar conditions
- Quality engineering - designed in the United States and backed by decades of automotive aftermarket experience
- Comprehensive solutions - this fuel line is part of a diverse collection of fuel line repair solutions
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool
- Perfect match for the car, and easy installation
- Part Number 1634702864 1634702964 1634703764
- All units tested in excellent working condition

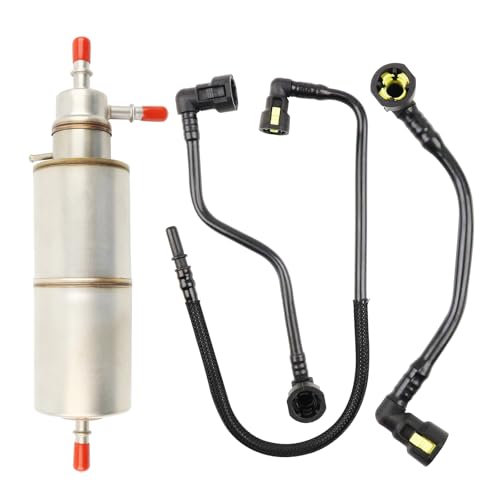

- Including Feed Line for Fuel Filter, Return Line for Fuel Filter, Fuel Line Lower
